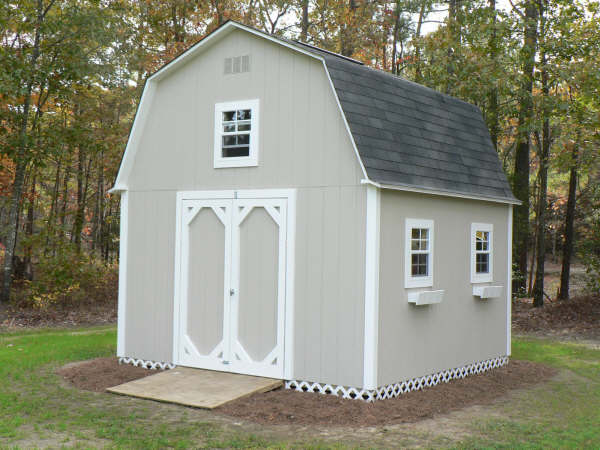

Your Typical Barn Remains The
Most Spacious Of Sheds


Style Description
The Barn Is Without A Doubt The Best Building For
Large Storage Needs. With A Full Gambrel Roof That
Provides No Shortcuts
Or Intrusions To Your Space
This Style Is An Excellent Choice For Lofts And Work Benches
Creating A Spacious Worry Free Work Area And Storage
Facility. You Get The Most Cubic Feet Of Storage For Your
Dollar. This User Friendly Building Can Become Your
Best Storage Friend !

Door Placement Details
4'x6' Double Shop Doors
On End Wall Of Barns With 4' Or 5' Sidewalls
5'x6' Double Shop Doors
On End Wall Of Barns With 6' Sidewalls
5'x6'6" Double Shop Doors
On End Wall Of Barns With 7', 8' Or 9' Sidewalls
For The Dutch Barn Look
5'x6'6" Double Shop Doors
On Sides Wall Of Barns With 7', 8' Or 9' Sidewalls
Oversize Shop Doors Are Available
Single Shop Doors Cannot Be Centered On Walls
Double Shop Doors Can Be Centered
On 8',12',16',20' or 24' Side Walls
Double Shop Doors Can Be Centered
On 8',10',12 or 16' End Walls
Steel 6 Panel Doors Are Available On 8' Walls Or
On 7' End Walls, If Floor Size Does Not Exceed 12'

Roof Details
Full Gambrel Roof,
No Shortened Bottom Side
Where All The Extra Storage Comes From
The Height Of The Roof Is 1/2 The Width
Of The Barn, For Maximum Storage Space
8 Wide = 4' Roof : 10 Wide = 5' Roof
12 Wide = 6' Roof : 16 Wide = 8' Roof
This Style Roof Allows Lean-To's Off
The Right Side Or Left Side Only

Wall Details
Standard Height, 1' Foot Higher Or 2' Foot Higher
8' Wide Barns With 4', 5' Or 6' Walls
10' Wide Barns With 6', 7' Or 8' Walls
12' & 16' Wide Barns
With 7', 8' Or 9' Walls
4' & 5' Side Walls Have Single Top & Bottom Plates
4' & 5' End Walls Have Single Bottom Plates
4' & 5' Walls Are Not Well Suited For Lofts
6' Walls Have Single Top & Bottom Plates
6' Walls Are Not Well Suited For Lofts But Can Be Installed
7', 8' Or 9' Walls Have Double Top & Single Bottom Plates
7', 8' Or 9' Walls Are Well Suited For Extra Loft Storage

Floor Details
All Floors Are Fully Pressure Treated
2x4 Or 2x6 Floor Joists 12" OC
5/8" Or 3/4" Treated CDX Plywood Decking
Placement Of 4x4 Skids / Runners

Extra Runners Are Offered At $2.00 A Foot / Includes Blocks
The 4x4's Have A .40 Treated Rating Grade
With A Manufacturer's Warranty Of 40 Years With Ground Contact

All Measurements Are Approximate

All Sheds Are Measured Width x Length x Height At Peak
With Height Of Sidewalls
The Width Is Always Measured At The Gable End

With Available Full Lofts and
Loft Doors
These Sheds Are
The Most Flexible
For Any of Your LARGE Storage Needs
